Solar Panel Patio Umbrella (Energy Storage System)

Solar Panel Patio Umbrella (Energy Storage System)

Solar picnic shelter combining sunshade, lighting and charging

The solar panel patio umbrella provides both shade and solar power generation on sunny days. Excess energy is stored in batteries for nighttime use, and the system can also draw low-cost electricity from the grid via its storage module to help users reduce energy costs.

This product is built with a three-layer system architecture: the perception layer, which features light, temperature, and wind sensors combined with a mobile app that reads local weather data to monitor natural conditions in real-time. The behavioral layer processes data using advanced algorithms to calculate the optimal solar panel tilt angle and assess wind speed and direction for safe operation. Finally, the execution layer utilizes precision stepper motors to adjust the umbrella’s position, ensuring maximum energy efficiency and protection against adverse weather conditions.

This eco-friendly system provides sustainable household energy and serves as a reliable emergency power source during natural disasters or armed conflicts, ensuring convenience and preparedness for users.

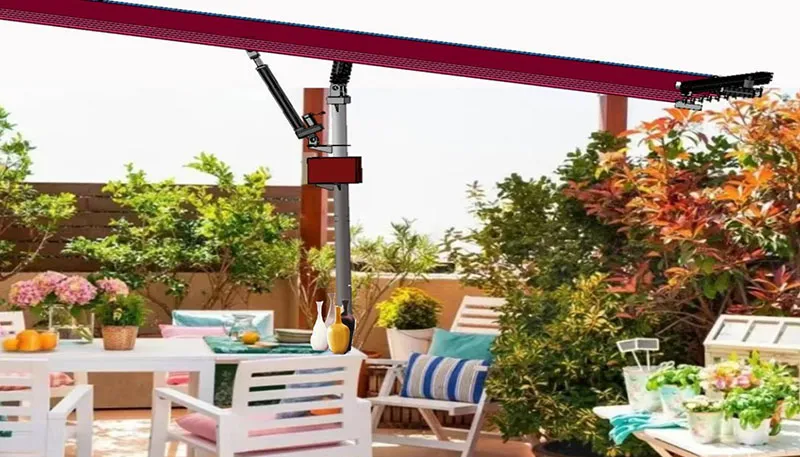

Solar Panel Patio Umbrella
Solar Panel Patio Umbrella
Solar Panel Patio Umbrella
Solar Panel Patio Umbrella
Solar Panel Patio Umbrella
Vertical Farming System
Specifications
Energy Generating Capacity 9kWh (based on 6 hours of direct sunlight)
Extended Area Umbrella surface: 16m² Solar panel: 12m²
Battery Type 2pcs of lithium iron phosphate battery (totally 3200W·h)
Voltage Customized to adapt to the required voltage at user's country

Features

It is equipped with a solar tracking function, which optimizes the tilt angle to enhance power generation efficiency.
It includes an anti-wind feature that automatically retracts the umbrella when wind speed exceeds a predefined threshold, ensuring safety and durability
Main Configurations
48V flexible monocrystalline solar panel Battery bank
57/86 stepper motor Inverter
MPPT (maximum power point tracking) circuit European multi-functional flush-mounted socket
Combiner box Relay power conversion board
Solar charge and discharge controller Automatic transfer switch
Residential load management mechanism Management receiving and processing board
57/86 stepper motor controller RS485 communication
Wind sensor Relay board
Sun sensor Data acquisition system
Temperature & humidity sensor Central control screen
LORO communication system Power adapter
Structure
  • Umbrella Base: Designed as a box-type structure, it houses key components such as the battery, inverter, solar controller, and power outlet board, enabling efficient energy storage and power output.
  • Umbrella Pole: The main connector between the base and frame, made of stainless steel. The pole contains internal wiring channels for connecting the solar panels and battery components.

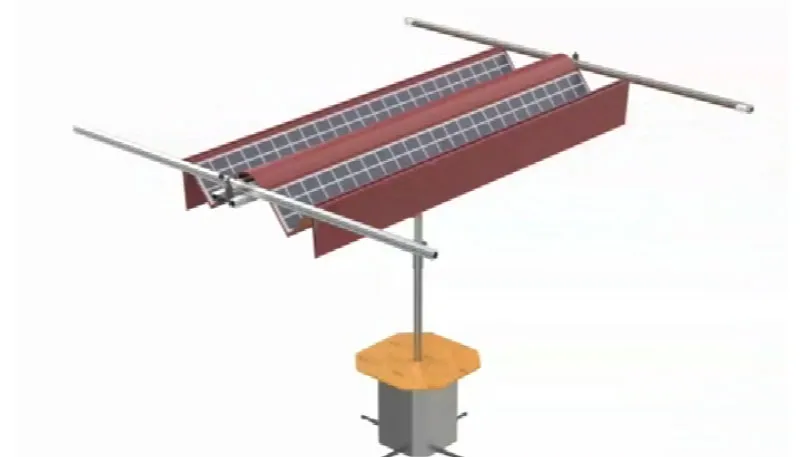

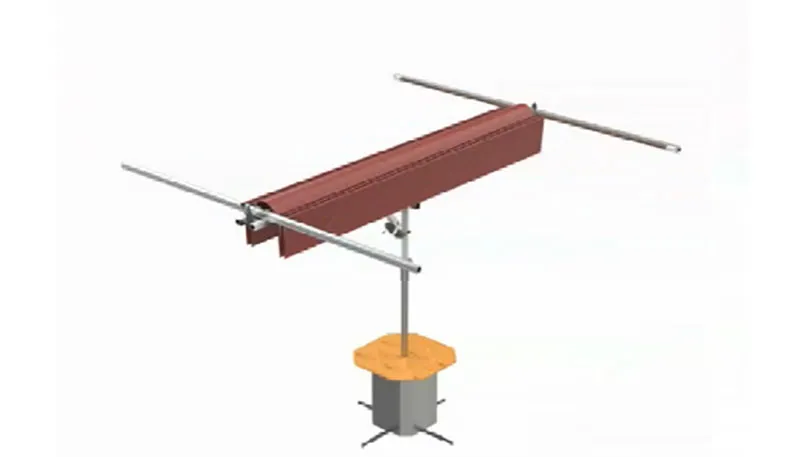

  • Umbrella Frame: The frame supports the canopy and is constructed from aluminum alloy tubing. It is designed to be foldable and retractable, allowing for easy storage.

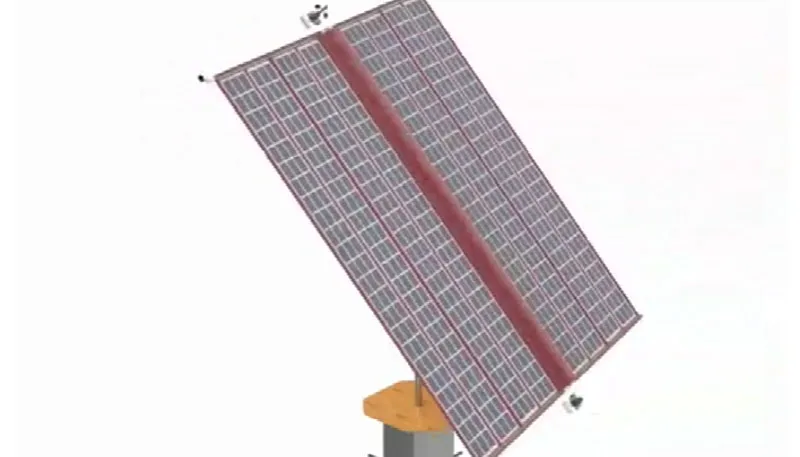

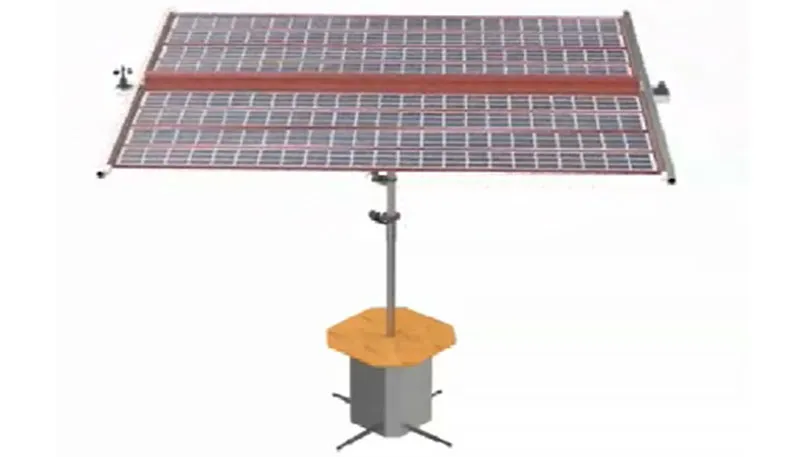

  • Solar Panels: Responsible for converting sunlight into electricity. Depending on the design, the panels can be mounted on the inner surface, outer surface, or embedded within the canopy.
  • LED Light: Provides illumination for nighttime use.
  • Charging Port and LED Light: The base is equipped with a charging port to allow users to charge external devices.
  • Canopy: A key component of the solar umbrella, typically made with flexible solar panels. It provides shade and rain protection while converting sunlight into electrical energy. The color and pattern of the canopy can be customized according to personal preference.
  • User-Friendly Management App: Offers convenient control and monitoring of the umbrella's functions.
Additional design features may include a mobile frame, rotary gear shaft, and removable solar panels to enhance usability and versatility.
